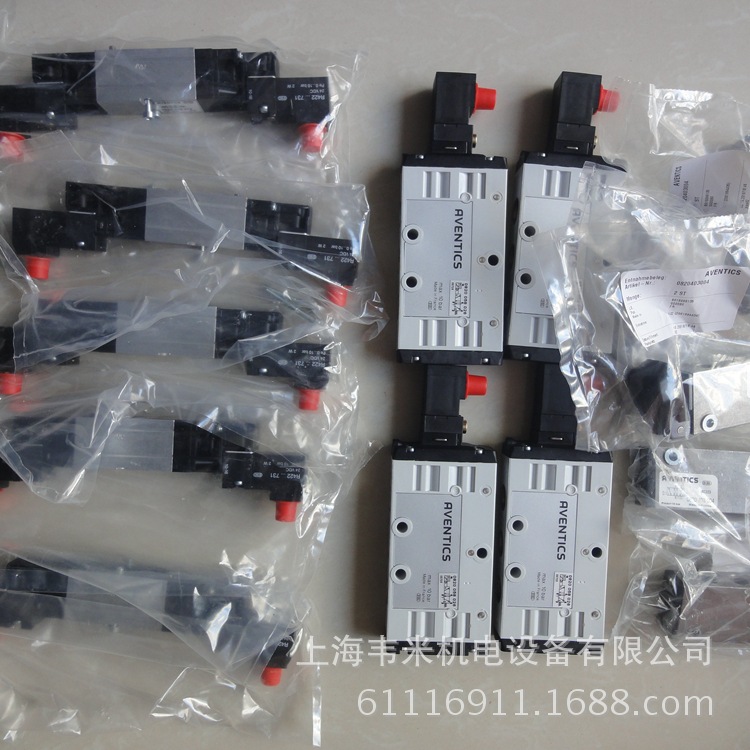

AVENTICS三位五通换向阀0820039216

2018年01月02日

AVENTICS三位五通换向阀0820039216是上海韦米机电设备有限公司主营产品之一,销售热线:021-61116913;联系人:雷青;在线QQ:2896079243;移动热线:13524123009;德国安沃驰AVENTICS进口气动阀,国外进口渠道,特价优势销售;欢迎新老客户来电咨询采购!



三位五通换向阀, 系列 CD02-AL
标准化 ISO 15407-1
尺寸 18 mm
结构特点 滑阀,零遮盖
外壳 铝材
密封件材料 丙烯树胶,氢化-丙烯腈-树胶
标准化电路接口 ISO 15217
保护形式符合EN 60529:2000,不带导线盒 IP65
接口尺寸 ISO 15217, C 型
类型 多芯插头
额定流量Qn 400 l/min
压缩空气 接口 人口 VDMA 02底板
压缩空气 接口 出口 VDMA 02底板
工作电压DC 24 V
结构特点 滑阀,零遮盖
密封原理 软密封
组合原理(闭锁原理) 底板原理
连接类型 底板连接
标准 ISO 15407-1, 18 mm
标准化电路接口 ISO 15217
工作压力范围 2,2 ... 10 bar
控制压力 最小/最大 2,2 ... 10 bar
最低 / 最高环境温度 0 ... 50 °C
介质温度范围 0 ... 60 °C
介质 压缩空气
颗粒大小 max. 5 μm
压缩空气中的含油量 0 ... 5 mg/m3
防护等级,带接口 IP65
暂载率 100 %
安装螺钉 M3
重量 0,17 kg
外壳 铝材, 阳极氧化处理
密封 丙烯树胶, 氢化-丙烯腈-树胶, 丙烯树胶
正面板 聚酰胺
螺纹管套 铝材
不可超过最小控制压力,否则会导致故障电路和可能发生阀故障!
压力露点必须至少低于环境和介质温度 15 °C ,并且允许 的最高温度为 3 °C 。
压缩空气的油含量必须在整个使用寿命中保持不变。
0820023026 安沃驰二位五通换向阀5811220100 安沃驰AVENTICS5727940220反面0820061211 AVENTICS三位五通换向阀0820058026 安沃驰电磁阀



气动电磁阀里有密闭的腔,在的不同位置开有通孔,气动电磁阀的每个孔都通向不同的油管,腔中间是阀,两面是两块电磁铁,哪面的磁铁线圈通电阀体就会被吸引到哪边;

气动电磁阀通过控制阀体的移动来档住或漏出不同的排油的孔,而进油孔是常开的,液压油就会进入不同的排油管,然后通过气动电磁阀的油的压力来推动油刚的活塞,这样通过控制气动电磁阀的电磁铁的电流就控制了整个电磁阀的机械运动

AVENTICS三位五通换向阀0820039216

0820039215 CD02-5/3CC-230AC
0820039216 CD02-5/3CC-024DC
0820039217 CD02-5/3CC-024DC
0820039218 CD02-5/3CC-024AC
0820039219 CD02-5/3CC-110AC
0820039230 CD02-5/3EC-230AC
0820039231 CD02-5/3EC-024DC
0820039232 CD02-5/3EC-024DC
0820039233 CD02-5/3EC-024AC
0820039234 CD02-5/3EC-110AC
0820039260 CD02-5/3PC-230AC
0820039261 CD02-5/3PC-024DC
0820039262 CD02-5/3PC-024DC
0820039263 CD02-5/3PC-024AC
0820039264 CD02-5/3PC-110AC
0820039315 CD02-5/3CC-230AC
0820039316 CD02-5/3CC-024DC
0820039317 CD02-5/3CC-024DC
0820039318 CD02-5/3CC-024AC
0820039319 CD02-5/3CC-110AC
0820039330 CD02-5/3EC-230AC
0820039331 CD02-5/3EC-024DC
0820039332 CD02-5/3EC-024DC
0820039333 CD02-5/3EC-024AC
0820039334 CD02-5/3EC-110AC
0820039360 CD02-5/3PC-230AC
0820039361 CD02-5/3PC-024DC
0820039362 CD02-5/3PC-024DC
0820039363 CD02-5/3PC-024AC
0820039364 CD02-5/3PC-110AC
0820039933 CD02-5/3CC-NONE
0820039934 CD02-5/3EC-NONE
0820039935 CD02-5/3PC-NONE
0820039943 CD02-5/3CC-NONE
0820039944 CD02-5/3EC-NONE
0820039945 CD02-5/3PC-NONE
0820039983 WV02-5/3CC-NONE
0820039984 WV02-5/3EC-NONE
0820039985 WV02-5/3PC-NONE
0820044001 DIR.-CONTROL VALVE DT VTS 5/2 EL DIF RD
0820044002 DIR.-CONTROL VALVE DT VTS 5/2 EL DIF RD
0820044005 DIR.-CONTROL VALVE DT VTS 2X5/2 PRES IN
0820044051 DIR.-CONTROL VALVE DT VTS 5/2 EL DIF RD
0820044055 DIR.-CONTROL VALVE DT VTS 2X5/2 PRES EX
0820044101 DIR.-CONTROL VALVE DT VTS 3/2 EL NF RD
0820044102 DIR.-CONTROL VALVE DT VTS 3/2 EL NF RD
0820044151 DIR.-CONTROL VALVE DT VTS 3/2 EL NF RD
0820044201 DIR.-CONTROL VALVE DT VTS 3/2 EL N0 RD
0820044202 DIR.-CONTROL VALVE DT VTS 3/2 EL N0 RD
0820044301 DIR.-CONTROL VALVE DT VTS 3/2 EL NF NO
0820044501 DIR.-CONTROL VALVE DT VTS 5/2 EL BIST.
0820044502 DIR.-CONTROL VALVE DT VTS 5/2 EL BIST.
0820044551 DIR.-CONTROL VALVE DT VTS 5/2 EL BIST.
0820044601 DIR.-CONTROL VALVE DT VTS 5/3 EL CF RD
0820044602 DIR.-CONTROL VALVE DT VTS 5/3 EL CF RD
0820044651 DIR.-CONTROL VALVE DT VTS 5/3 EL CF RD
0820045021 DIR.-CONTROL VALVE DT VTS 5/2 EL MONO
0820045022 DIR.-CONTROL VALVE DT VTS 5/2 EL MONO
0820045051 DIR.-CONTROL VALVE DT VTS 5/2 EL MONO
0820045101 DIR.-CONTROL VALVE DT VTS 3/2 EL NF
0820045102 DIR.-CONTROL VALVE DT VTS 3/2 EL NF
0820045151 DIR.-CONTROL VALVE DT VTS 3/2 EL NF
0820045201 DIR.-CONTROL VALVE DT VTS 3/2 EL NO
0820045202 DIR.-CONTROL VALVE DT VTS 3/2 EL NO
0820045251 DIR.-CONTROL VALVE DT VTS 3/2 EL NO
0820045301 DIR.-CONTROL VALVE DT VTS 3/2 EL NF NO
0820045302 DIR.-CONTROL VALVE DT VTS 3/2 EL NF NO
0820045351 DIR.-CONTROL VALVE DT VTS 3/2 EL NF NO
0820045521 DIR.-CONTROL VALVE DT VTS 5/2 EL BIST
0820045522 DIR.-CONTROL VALVE DT VTS 5/2 EL BIST
0820045551 DIR.-CONTROL VALVE DT VTS 5/2 EL BIST
0820045601 DIR.-CONTROL VALVE DT VTS 5/3 EL CF
0820045602 DIR.-CONTROL VALVE DT VTS 5/3 EL CF
0820045651 DIR.-CONTROL VALVE DT VTS 5/3 EL CF
0820046002 DO22-3/2NC-SPEZ-024DC
0820046005 DO22-3/2NC-SPEZ-024DC
0820046101 DO22-3/2NO-SPEZ-024DC
0820046980 DO22-3/2NC-SPEZ-NO_COIL
0820046990 DO22-3/2NO-SPEZ-NO_COIL
0820046991 DO22-3/2NO-SPEZ-NO_COIL
0820048001 DO16-3/2NC-IS15-230AC-MOI
0820048002 DO16-3/2NC-IS15-024DC-MOI
0820048003 DO16-3/2NC-IS15-024DC 1W-MOI
0820048004 DO16-3/2NC-IS15-024AC-MOI
0820048005 DO16-3/2NC-IS15-110AC-MOI
0820048012 DO16-3/2NC-IS15-024DC-AMP-MOI
0820048025 DO16-3/2NC-IS15-230AC-MOB
0820048026 DO16-3/2NC-IS15-024DC-MOB
0820048027 DO16-3/2NC-IS15-024DC 1W-MOB
0820048028 DO16-3/2NC-IS15-024AC-MOB
0820048029 DO16-3/2NC-IS15-110AC-MOB
0820048077 DO16-3/2NC-IS15-024DC-AMP-NO
0820048101 DO16-3/2NO-IS15-230AC-MOI
0820048102 DO16-3/2NO-IS15-024DC-MOI
0820048108 DO16-3/2NO-IS15-024DC-8B-MOI
0820048126 DO16-3/2NO-IS15-024DC-MOB
0820050006 SOLENOID-OPERATED S/E ELECTROVANNE
0820050026 SOLENOID-OPERATED ELECTROVANNE
0820050055 SOLENOID-OPERATED ELECTROVANNE
0820050991 SOLENOID-OPERATED S/E ELECTROVANNE
0820051002 CD01-5/2AR-VD01-024DC-AL
0820051026 CD01-5/2SR-VD01-024DC-AL
0820051027 CD01-5/2SR-VD01-024DC-AL
0820051028 CD01-5/2SR-VD01-024AC-AL
0820051030 CD01-5/2SR-VD01-024DC-AL
0820051052 CD01-5/2AR-VD01-024DC-AL
0820051053 CD01-5/2AR-VD01-024DC-AL
0820051075 CD01-5/2SR-VD01-230AC-AL
0820051076 CD01-5/2SR-VD01-024DC-AL
0820051080 CD01-5/2SR-VD01-024DC-AL
0820051202 CD01-5/2AR-VD01-024DC-AL-M12
0820051226 CD01-5/2SR-VD01-024DC-AL-M12
0820051236 CD01-5/2SR-VD01-024DC-AL-M12
0820051252 CD01-5/2AR-VD01-024DC-AL-M12
0820051262 CD01-5/2AR-VD01-024DC-AL-M12
0820051276 CD01-5/2SR-VD01-024DC-AL-M12
0820051286 CD01-5/2SR-VD01-024DC-AL-M12
0820051502 CD01-5/2DS-VD01-024DC-AL
0820051503 CD01-5/2DS-VD01-024DC-AL
0820051551 CD01-5/2DS-VD01-230AC-AL
0820051552 CD01-5/2DS-VD01-024DC-AL
0820051702 CD01-5/2DS-VD01-024DC-AL-M12
0820051712 CD01-5/2DS-VD01-024DC-AL-M12
0820051752 CD01-5/2DS-VD01-024DC-AL-M12
0820051762 CD01-5/2DS-VD01-024DC-AL-M12
0820051980 CD01-5/2AR-VD01-NONE-AL
0820051990 CD01-5/2AR-VD01-NONE-AL
0820051991 CD01-5/2SR-VD01-NONE-AL
0820051992 CD01-5/2DS-VD01-NONE-AL
0820052002 CD01-5/3CC-VD01-024DC-AL
0820052006 CD01-5/3CC-VD01-024DC-AL
0820052026 CD01-5/3EC-VD01-024DC-AL
0820052053 CD01-5/3PC-VD01-024DC-AL
0820052102 CD01-5/3CC-VD01-024DC-AL
0820052106 CD01-5/3CC-VD01-024DC-AL
0820052126 CD01-5/3EC-VD01-024DC-AL
0820052402 CD01-5/3CC-VD01-024DC-AL-M12
0820052412 CD01-5/3CC-VD01-024DC-AL-M12
0820052426 CD01-5/3EC-VD01-024DC-AL-M12
0820052452 CD01-5/3PC-VD01-024DC-AL-M12
0820052462 CD01-5/3PC-VD01-024DC-AL-M12
0820052502 CD01-5/3CC-VD01-024DC-AL-M12
0820052512 CD01-5/3CC-VD01-024DC-AL-M12
0820052526 CD01-5/3EC-VD01-024DC-AL-M12
0820052536 CD01-5/3EC-VD01-024DC-AL-M12
0820052992 CD01-5/3PC-VD01-NONE-AL
0820053002 CD01-3/2NC-VD01-024DC-AL
0820053026 CD01-3/2NO-VD01-024DC-AL
0820053102 CD01-3/2NC-VD01-024DC-AL
0820053402 CD01-3/2NC-VD01-024DC-AL-M12
0820053502 CD01-3/2NC-VD01-024DC-AL-M12
0820053506 CD01-3/2NC-VD01-024DC-AL-M12
0820055001 HF03 - 5/2AR - 024DC
0820055002 HF03 - 5/2AR - 024DC
0820055051 HF03 - 5/2SR - 024DC
0820055052 HF03 - 5/2SR - 024DC
0820055101 HF03 - 3/2CC - 024DC
0820055102 HF03 - 3/2CC - 024DC
0820055201 HF03 - 3/2OO - 024DC
0820055202 HF03 - 3/2OO - 024DC
0820055301 HF03 - 3/2OC - 024DC
0820055302 HF03 - 3/2OC - 024DC
0820055311 HF03 - 3/2OC - 024DC
0820055312 HF03 - 3/2OC - 024DC
0820055501 HF03 - 5/2DS - 024DC
0820055502 HF03 - 5/2DS - 024DC
0820055601 HF03 - 5/3CC - 024DC
0820055602 HF03 - 5/3CC - 024DC
0820056001 HF02 - 5/2AR - 024DC
0820056002 HF02 - 5/2AR - 024DC
0820056051 HF02 - 5/2SR - 024DC
0820056052 HF02 - 5/2SR - 024DC
0820056101 HF02 - 3/2CC - 024DC
0820056102 HF02 - 3/2CC - 024DC
0820056201 HF02 - 3/2OO - 024DC
0820056202 HF02 - 3/2OO - 024DC
0820056301 HF02 - 3/2OC - 024DC
0820056302 HF02 - 3/2OC - 024DC
0820056501 HF02 - 5/2DS - 024DC
0820056502 HF02 - 5/2DS - 024DC
0820056601 HF02 - 5/3CC - 024DC
0820056602 HF02 - 5/3CC - 024DC
0820058001 TC15-5/2XX-AR-024DC-I-FORM_C-SGL
0820058002 TC15-5/2XX-AR-110AC-I-FORM_C-SGL
0820058003 TC15-5/2XX-AR-230AC-I-FORM_C-SGL
0820058026 TC15-5/2XX-SR-024DC-I-FORM_C-SGL
0820058027 TC15-5/2XX-SR-110AC-I-FORM_C-SGL
0820058028 TC15-5/2XX-SR-230AC-I-FORM_C-SGL
0820058051 TC15-5/2XX-AR-024DC-E-FORM_C-SGL
0820058052 TC15-5/2XX-AR-110AC-E-FORM_C-SGL
0820058053 TC15-5/2XX-AR-230AC-E-FORM_C-SGL
0820058076 TC15-5/2XX-SR-024DC-E-FORM_C-SGL
0820058077 TC15-5/2XX-SR-110AC-E-FORM_C-SGL
0820058078 TC15-5/2XX-SR-230AC-E-FORM_C-SGL
0820058101 TC15-5/2XX-AR-024DC-I-FORM_C-SGL
0820058102 TC15-5/2XX-AR-110AC-I-FORM_C-SGL
0820058103 TC15-5/2XX-AR-230AC-I-FORM_C-SGL
0820058126 TC15-5/2XX-SR-024DC-I-FORM_C-SGL
0820058127 TC15-5/2XX-SR-110AC-I-FORM_C-SGL
0820058128 TC15-5/2XX-SR-230AC-I-FORM_C-SGL
0820058151 TC15-5/2XX-AR-024DC-E-FORM_C-SGL
0820058152 TC15-5/2XX-AR-110AC-E-FORM_C-SGL
0820058153 TC15-5/2XX-AR-230AC-E-FORM_C-SGL
0820058176 TC15-5/2XX-SR-024DC-E-FORM_C-SGL
0820058177 TC15-5/2XX-SR-110AC-E-FORM_C-SGL
0820058178 TC15-5/2XX-SR-230AC-E-FORM_C-SGL
0820058201 TC15-5/2XX-AR-024DC-I-M8X1_4P-SGL
0820058211 TC15-5/2XX-SR-024DC-I-M8X1_4P-SGL
0820058221 TC15-5/2XX-DO-024DC-I-M8X1_4P-SGL
0820058251 TC15-5/2XX-AR-024DC-E-M8X1_4P-SGL
0820058261 TC15-5/2XX-SR-024DC-E-M8X1_4P-SGL
0820058271 TC15-5/2XX-DO-024DC-E-M8X1_4P-SGL
0820058301 TC15-5/2XX-AR-024DC-I-M8X1_4P-SGL
0820058311 TC15-5/2XX-SR-024DC-I-M8X1_4P-SGL
0820058321 TC15-5/2XX-DO-024DC-I-M8X1_4P-SGL
0820058351 TC15-5/2XX-AR-024DC-E-M8X1_4P-SGL
0820058361 TC15-5/2XX-SR-024DC-E-M8X1_4P-SGL
0820058371 TC15-5/2XX-DO-024DC-E-M8X1_4P-SGL
0820058411 TC15-5/2XX-SR-024DC-I-FORM_C-SGL
0820058416 TC15-5/2XX-SR-024DC-I-FORM_C-SGL
0820058501 TC15-5/2XX-DO-024DC-I-FORM_C-SGL
0820058502 TC15-5/2XX-DO-110AC-I-FORM_C-SGL
0820058503 TC15-5/2XX-DO-230AC-I-FORM_C-SGL
0820058551 TC15-5/2XX-DO-024DC-E-FORM_C-SGL
0820058552 TC15-5/2XX-DO-110AC-E-FORM_C-SGL
0820058553 TC15-5/2XX-DO-230AC-E-FORM_C-SGL
0820058601 TC15-5/2XX-DO-024DC-I-FORM_C-SGL
0820058602 TC15-5/2XX-DO-110AC-I-FORM_C-SGL
0820058603 TC15-5/2XX-DO-230AC-I-FORM_C-SGL
0820058651 TC15-5/2XX-DO-024DC-E-FORM_C-SGL
0820058652 TC15-5/2XX-DO-110AC-E-FORM_C-SGL
0820058653 TC15-5/2XX-DO-230AC-E-FORM_C-SGL
0820058751 TC15-5/2XX-AR-024DC-E-FORM_C-VTS
0820058761 TC15-5/2XX-SR-024DC-E-FORM_C-VTS
0820058762 TC15-5/2XX-SR-110AC-E-FORM_C-VTS
0820058763 TC15-5/2XX-SR-230AC-E-FORM_C-VTS
0820058771 TC15-5/2XX-DO-024DC-E-FORM_C-VTS
0820058773 TC15-5/2XX-DO-230AC-E-FORM_C-VTS
0820058796 TC15-5/2XX-AR-024DC-E-M8X1_4P-VTS
0820058797 TC15-5/2XX-SR-024DC-E-M8X1_4P-VTS
0820058798 TC15-5/2XX-DO-024DC-E-M8X1_4P-VTS
0820058851 TC15-5/2XX-AR-024DC-E-FORM_C-VTS
0820058861 TC15-5/2XX-SR-024DC-E-FORM_C-VTS
0820058871 TC15-5/2XX-DO-024DC-E-FORM_C-VTS
0820058896 TC15-5/2XX-AR-024DC-E-M8X1_4P-VTS
0820058897 TC15-5/2XX-SR-024DC-E-M8X1_4P-VTS
0820058898 TC15-5/2XX-DO-024DC-E-M8X1_4P-VTS
0820059001 TC15-5/3CC-DO-024DC-I-FORM_C-SGL
0820059002 TC15-5/3CC-DO-110AC-I-FORM_C-SGL
0820059003 TC15-5/3CC-DO-230AC-I-FORM_C-SGL
0820059011 TC15-5/3EC-DO-024DC-I-FORM_C-SGL
0820059012 TC15-5/3EC-DO-110AC-I-FORM_C-SGL
0820059013 TC15-5/3EC-DO-230AC-I-FORM_C-SGL
0820059021 TC15-5/3PC-DO-024DC-I-FORM_C-SGL
0820059022 TC15-5/3PC-DO-110AC-I-FORM_C-SGL
0820059023 TC15-5/3PC-DO-230AC-I-FORM_C-SGL
0820059051 TC15-5/3CC-DO-024DC-E-FORM_C-SGL
0820059052 TC15-5/3CC-DO-110AC-E-FORM_C-SGL
0820059053 TC15-5/3CC-DO-230AC-E-FORM_C-SGL
0820059061 TC15-5/3EC-DO-024DC-E-FORM_C-SGL
0820059062 TC15-5/3EC-DO-110AC-E-FORM_C-SGL
0820059063 TC15-5/3EC-DO-230AC-E-FORM_C-SGL
0820059071 TC15-5/3PC-DO-024DC-E-FORM_C-SGL
0820059072 TC15-5/3PC-DO-110AC-E-FORM_C-SGL
0820059073 TC15-5/3PC-DO-230AC-E-FORM_C-SGL
0820059101 TC15-5/3CC-DO-024DC-I-FORM_C-SGL
0820059102 TC15-5/3CC-DO-110AC-I-FORM_C-SGL
0820059103 TC15-5/3CC-DO-230AC-I-FORM_C-SGL
0820059111 TC15-5/3EC-DO-024DC-I-FORM_C-SGL
0820059112 TC15-5/3EC-DO-110AC-I-FORM_C-SGL
0820059113 TC15-5/3EC-DO-230AC-I-FORM_C-SGL
0820059121 TC15-5/3PC-DO-024DC-I-FORM_C-SGL
0820059122 TC15-5/3PC-DO-110AC-I-FORM_C-SGL
0820059123 TC15-5/3PC-DO-230AC-I-FORM_C-SGL
0820059151 TC15-5/3CC-DO-024DC-E-FORM_C-SGL
0820059152 TC15-5/3CC-DO-110AC-E-FORM_C-SGL
0820059153 TC15-5/3CC-DO-230AC-E-FORM_C-SGL
0820059161 TC15-5/3EC-DO-024DC-E-FORM_C-SGL
0820059162 TC15-5/3EC-DO-110AC-E-FORM_C-SGL
0820059163 TC15-5/3EC-DO-230AC-E-FORM_C-SGL
0820059171 TC15-5/3PC-DO-024DC-E-FORM_C-SGL
0820059172 TC15-5/3PC-DO-110AC-E-FORM_C-SGL
0820059173 TC15-5/3PC-DO-230AC-E-FORM_C-SGL
0820059201 TC15-5/3CC-DO-024DC-I-M8X1_4P-SGL
0820059211 TC15-5/3EC-DO-024DC-I-M8X1_4P-SGL
0820059221 TC15-5/3PC-DO-024DC-I-M8X1_4P-SGL
0820059251 TC15-5/3CC-DO-024DC-E-M8X1_4P-SGL
0820059261 TC15-5/3EC-DO-024DC-E-M8X1_4P-SGL
0820059271 TC15-5/3PC-DO-024DC-E-M8X1_4P-SGL
0820059301 TC15-5/3CC-DO-024DC-I-M8X1_4P-SGL
0820059311 TC15-5/3EC-DO-024DC-I-M8X1_4P-SGL
0820059321 TC15-5/3PC-DO-024DC-I-M8X1_4P-SGL
0820059351 TC15-5/3CC-DO-024DC-E-M8X1_4P-SGL
0820059361 TC15-5/3EC-DO-024DC-E-M8X1_4P-SGL
0820059371 TC15-5/3PC-DO-024DC-E-M8X1_4P-SGL
0820059751 TC15-5/3CC-DO-024DC-E-FORM_C-VTS
0820059761 TC15-5/3EC-DO-024DC-E-FORM_C-VTS
0820059762 TC15-5/3EC-DO-110AC-E-FORM_C-VTS
0820059763 TC15-5/3EC-DO-230AC-E-FORM_C-VTS
0820059771 TC15-5/3PC-DO-024DC-E-FORM_C-VTS
0820059796 TC15-5/3CC-DO-024DC-E-M8X1_4P-VTS
0820059797 TC15-5/3EC-DO-024DC-E-M8X1_4P-VTS
0820059798 TC15-5/3PC-DO-024DC-E-M8X1_4P-VTS
0820059851 TC15-5/3CC-DO-024DC-E-FORM_C-VTS
0820059861 TC15-5/3EC-DO-024DC-E-FORM_C-VTS
0820059871 TC15-5/3PC-DO-024DC-E-FORM_C-VTS
0820059896 TC15-5/3CC-DO-024DC-E-M8X1_4P-VTS
0820059897 TC15-5/3EC-DO-024DC-E-M8X1_4P-VTS
0820059898 TC15-5/3PC-DO-024DC-E-M8X1_4P-VTS
0820060001 TC08-5/2XX-AR-024DC-I-FORM_C-SGL
0820060002 TC08-5/2XX-AR-110AC-I-FORM_C-SGL
0820060003 TC08-5/2XX-AR-230AC-I-FORM_C-SGL
0820060026 TC08-5/2XX-AS-024DC-I-FORM_C-SGL
0820060027 TC08-5/2XX-AS-110AC-I-FORM_C-SGL
0820060028 TC08-5/2XX-AS-230AC-I-FORM_C-SGL
0820060051 TC08-5/2XX-AR-024DC-E-FORM_C-SGL
0820060052 TC08-5/2XX-AR-110AC-E-FORM_C-SGL
0820060053 TC08-5/2XX-AR-230AC-E-FORM_C-SGL
0820060076 TC08-5/2XX-AS-024DC-E-FORM_C-SGL
0820060077 TC08-5/2XX-AS-110AC-E-FORM_C-SGL
0820060078 TC08-5/2XX-AS-230AC-E-FORM_C-SGL
0820060101 TC08-5/2XX-AR-024DC-I-FORM_C-SGL
0820060102 TC08-5/2XX-AR-110AC-I-FORM_C-SGL
0820060103 TC08-5/2XX-AR-230AC-I-FORM_C-SGL
0820060126 TC08-5/2XX-AS-024DC-I-FORM_C-SGL
0820060127 TC08-5/2XX-AS-110AC-I-FORM_C-SGL
0820060128 TC08-5/2XX-AS-230AC-I-FORM_C-SGL
0820060151 TC08-5/2XX-AR-024DC-E-FORM_C-SGL
0820060152 TC08-5/2XX-AR-110AC-E-FORM_C-SGL
0820060153 TC08-5/2XX-AR-230AC-E-FORM_C-SGL
0820060176 TC08-5/2XX-AS-024DC-E-FORM_C-SGL
0820060177 TC08-5/2XX-AS-110AC-E-FORM_C-SGL
0820060178 TC08-5/2XX-AS-230AC-E-FORM_C-SGL
0820060201 TC08-5/2XX-AR-024DC-I-M8X1_4P-SGL
0820060211 TC08-5/2XX-AS-024DC-I-M8X1_4P-SGL
0820060221 TC08-5/2XX-DO-024DC-I-M8X1_4P-SGL
0820060251 TC08-5/2XX-AR-024DC-E-M8X1_4P-SGL

AVENTICS三位五通换向阀0820039216





气动控制阀是指在气动系统中控制气流的压力、流量和流动方向,并保证气动执行元件或机构正常工作的各类气动元件。气动控制阀的结构可分解成阀体(包含阀座和阀孔等)和阀心两部分,根据两者的相对位置,有常闭型和常开型两种。阀从结构上可以分为:截止式、滑柱式和滑板式三类阀。

气动控制阀是指在气动系统中控制气流的压力、流量和流动方向,并保证气动执行元件或机构正常工作的各类气动元件。控制和调节压缩空气压力的元件称为压力控制阀。

控制和调节压缩空气流量的元件称为流量控制阀。改变和控制气流流动方向的元件称为方向控制阀。

AVENTICS三位五通换向阀0820039216

0820060261 TC08-5/2XX-AS-024DC-E-M8X1_4P-SGL
0820060271 TC08-5/2XX-DO-024DC-E-M8X1_4P-SGL
0820060301 TC08-5/2XX-AR-024DC-I-M8X1_4P-SGL
0820060311 TC08-5/2XX-AS-024DC-I-M8X1_4P-SGL
0820060321 TC08-5/2XX-DO-024DC-I-M8X1_4P-SGL
0820060351 TC08-5/2XX-AR-024DC-E-M8X1_4P-SGL
0820060361 TC08-5/2XX-AS-024DC-E-M8X1_4P-SGL
0820060371 TC08-5/2XX-DO-024DC-E-M8X1_4P-SGL
0820060501 TC08-5/2XX-DO-024DC-I-FORM_C-SGL
0820060502 TC08-5/2XX-DO-110AC-I-FORM_C-SGL
0820060503 TC08-5/2XX-DO-230AC-I-FORM_C-SGL
0820060551 TC08-5/2XX-DO-024DC-E-FORM_C-SGL
0820060552 TC08-5/2XX-DO-110AC-E-FORM_C-SGL
0820060553 TC08-5/2XX-DO-230AC-E-FORM_C-SGL
0820060601 TC08-5/2XX-DO-024DC-I-FORM_C-SGL
0820060602 TC08-5/2XX-DO-110AC-I-FORM_C-SGL
0820060603 TC08-5/2XX-DO-230AC-I-FORM_C-SGL
0820060651 TC08-5/2XX-DO-024DC-E-FORM_C-SGL
0820060652 TC08-5/2XX-DO-110AC-E-FORM_C-SGL
0820060653 TC08-5/2XX-DO-230AC-E-FORM_C-SGL
0820060751 TC08-5/2XX-AR-024DC-E-FORM_C-VTS
0820060752 TC08-5/2XX-AR-110AC-E-FORM_C-VTS
0820060761 TC08-5/2XX-AS-024DC-E-FORM_C-VTS
0820060762 TC08-5/2XX-AS-110AC-E-FORM_C-VTS
0820060763 TC08-5/2XX-AS-230AC-E-FORM_C-VTS
0820060771 TC08-5/2XX-DO-024DC-E-FORM_C-VTS
0820060772 TC08-5/2XX-DO-110AC-E-FORM_C-VTS
0820060796 TC08-5/2XX-AR-024DC-E-M8X1_4P-VTS
0820060797 TC08-5/2XX-AS-024DC-E-M8X1_4P-VTS
0820060798 TC08-5/2XX-DO-024DC-E-M8X1_4P-VTS
0820060851 TC08-5/2XX-AR-024DC-E-FORM_C-VTS
0820060861 TC08-5/2XX-AS-024DC-E-FORM_C-VTS
0820060862 TC08-5/2XX-AS-110AC-E-FORM_C-VTS
0820060871 TC08-5/2XX-DO-024DC-E-FORM_C-VTS
0820060896 TC08-5/2XX-AR-024DC-E-M8X1_4P-VTS
0820060897 TC08-5/2XX-AS-024DC-E-M8X1_4P-VTS
0820060898 TC08-5/2XX-DO-024DC-E-M8X1_4P-VTS
0820061001 TC08-5/3CC-DO-024DC-I-FORM_C-SGL
0820061002 TC08-5/3CC-DO-110AC-I-FORM_C-SGL
0820061003 TC08-5/3CC-DO-230AC-I-FORM_C-SGL
0820061011 TC08-5/3EC-DO-024DC-I-FORM_C-SGL
0820061012 TC08-5/3EC-DO-110AC-I-FORM_C-SGL
0820061013 TC08-5/3EC-DO-230AC-I-FORM_C-SGL
0820061021 TC08-5/3PC-DO-024DC-I-FORM_C-SGL
0820061022 TC08-5/3PC-DO-110AC-I-FORM_C-SGL
0820061023 TC08-5/3PC-DO-230AC-I-FORM_C-SGL
0820061051 TC08-5/3CC-DO-024DC-E-FORM_C-SGL
0820061052 TC08-5/3CC-DO-110AC-E-FORM_C-SGL
0820061053 TC08-5/3CC-DO-230AC-E-FORM_C-SGL
0820061061 TC08-5/3EC-DO-024DC-E-FORM_C-SGL
0820061062 TC08-5/3EC-DO-110AC-E-FORM_C-SGL
0820061063 TC08-5/3EC-DO-230AC-E-FORM_C-SGL
0820061071 TC08-5/3PC-DO-024DC-E-FORM_C-SGL
0820061072 TC08-5/3PC-DO-110AC-E-FORM_C-SGL
0820061073 TC08-5/3PC-DO-230AC-E-FORM_C-SGL
0820061101 TC08-5/3CC-DO-024DC-I-FORM_C-SGL
0820061102 TC08-5/3CC-DO-110AC-I-FORM_C-SGL
0820061103 TC08-5/3CC-DO-230AC-I-FORM_C-SGL
0820061111 TC08-5/3EC-DO-024DC-I-FORM_C-SGL
0820061112 TC08-5/3EC-DO-110AC-I-FORM_C-SGL
0820061113 TC08-5/3EC-DO-230AC-I-FORM_C-SGL
0820061121 TC08-5/3PC-DO-024DC-I-FORM_C-SGL
0820061122 TC08-5/3PC-DO-110AC-I-FORM_C-SGL
0820061123 TC08-5/3PC-DO-230AC-I-FORM_C-SGL
0820061151 TC08-5/3CC-DO-024DC-E-FORM_C-SGL
0820061152 TC08-5/3CC-DO-110AC-E-FORM_C-SGL
0820061153 TC08-5/3CC-DO-230AC-E-FORM_C-SGL
0820061161 TC08-5/3EC-DO-024DC-E-FORM_C-SGL
0820061162 TC08-5/3EC-DO-110AC-E-FORM_C-SGL
0820061163 TC08-5/3EC-DO-230AC-E-FORM_C-SGL
0820061171 TC08-5/3PC-DO-024DC-E-FORM_C-SGL
0820061172 TC08-5/3PC-DO-110AC-E-FORM_C-SGL
0820061173 TC08-5/3PC-DO-230AC-E-FORM_C-SGL
0820061201 TC08-5/3CC-DO-024DC-I-M8X1_4P-SGL
0820061211 TC08-5/3EC-DO-024DC-I-M8X1_4P-SGL
0820061221 TC08-5/3PC-DO-024DC-I-M8X1_4P-SGL
0820061251 TC08-5/3CC-DO-024DC-E-M8X1_4P-SGL
0820061261 TC08-5/3EC-DO-024DC-E-M8X1_4P-SGL
0820061271 TC08-5/3PC-DO-024DC-E-M8X1_4P-SGL
0820061301 TC08-5/3CC-DO-024DC-I-M8X1_4P-SGL
0820061311 TC08-5/3EC-DO-024DC-I-M8X1_4P-SGL
0820061321 TC08-5/3PC-DO-024DC-I-M8X1_4P-SGL
0820061351 TC08-5/3CC-DO-024DC-E-M8X1_4P-SGL
0820061361 TC08-5/3EC-DO-024DC-E-M8X1_4P-SGL
0820061371 TC08-5/3PC-DO-024DC-E-M8X1_4P-SGL
0820061751 TC08-5/3CC-DO-024DC-E-FORM_C-VTS
0820061761 TC08-5/3EC-DO-024DC-E-FORM_C-VTS
0820061763 TC08-5/3EC-DO-230AC-E-FORM_C-VTS
0820061771 TC08-5/3PC-DO-024DC-E-FORM_C-VTS
0820061796 TC08-5/3CC-DO-024DC-E-M8X1_4P-VTS
0820061797 TC08-5/3EC-DO-024DC-E-M8X1_4P-VTS
0820061798 TC08-5/3PC-DO-024DC-E-M8X1_4P-VTS
0820061851 TC08-5/3CC-DO-024DC-E-FORM_C-VTS
0820061861 TC08-5/3EC-DO-024DC-E-FORM_C-VTS
0820061871 TC08-5/3PC-DO-024DC-E-FORM_C-VTS
0820061896 TC08-5/3CC-DO-024DC-E-M8X1_4P-VTS
0820061897 TC08-5/3EC-DO-024DC-E-M8X1_4P-VTS
0820061898 TC08-5/3PC-DO-024DC-E-M8X1_4P-VTS
0820062001 HF04 - 5/2AR - 024DC
0820062002 HF04 - 5/2AR - 024DC
0820062051 HF04 - 5/2SR - 024DC
0820062052 HF04 - 5/2SR - 024DC
0820062101 HF04 - 3/2CC - 024DC
0820062102 HF04 - 3/2CC - 024DC
0820062105 HF04 - 3/2CC - 024DC - ATEX - DURR
0820062201 HF04 - 3/2OO - 024DC
0820062202 HF04 - 3/2OO - 024DC
0820062301 HF04 - 3/2OC - 024DC
0820062302 HF04 - 3/2OC - 024DC
0820062501 HF04 - 5/2DS - 024DC
0820062502 HF04 - 5/2DS - 024DC
0820062601 HF04 - 5/3CC - 024DC
0820062602 HF04 - 5/3CC - 024DC
0820204003 VVST-5/2SR
0820204006 DIST.INOX C098/T021 "5/2 UMSCHALTVENTIL
0820204007 VVST-5/2SR
0820205003 VVST-5/2DP
0820205006 VVST-5/2DP
0820212001 VVST-3/2NC
0820212002 VVST-3/2NC
0820212010 DIR.-CONTROL VALVE .
0820212103 AMPLIFIER .
0820212104 AMPLIFICATEUR
0820212200 DIR.-CONTROL VALVE 3/2NO
0820212201 SENSOR SP1
0820213001 VVST-3/2DP
0820213003 DIR.-CONTROL VALVE "3/2 WV 1/8"", STAHL
0820213004 DIR.-CONTROL VALVE 3/2WV1/8INOX C099T03
0820215003 DIR.-CONTROL VALVE 3/2 NG4 (G1/8)TEMPO*
0820215004 SWIV.TIME LIMIT.V. 3/2 1/8 TEMPO
0820215101 TIME-SWITCHED VALV .
0820215102 TIME-SWITCHED VALV .
0820215103 TIME-SWITCHED VALV .
0820215104 TIME-SWITCHED VALV .
0820215105 TIME-SWITCHED VALV .
0820215111 TIME-SWITCHED VALV .
0820215112 TIME-SWITCHED VALV EITSCHALTVENTIL ANSC
0820215113 TIME-SWITCHED VALV EITSCHALTVENTIL ANSC
0820215114 TIME-SWITCHED VALV EITSCHALTVENTIL ANSC
0820215115 PULSE GENERATOR .
0820215116 PULSE GENERATOR .
0820215117 TIME-SWITCHED VALV .
0820215118 TIME-SWITCHED VALV 20-300 SECONDES
0820215119 TIME-SWITCHED VALV .
0820215120 TIME-SWITCHED VALV .
0820222002 DR1/4 PN.DIF.RE.3/2
0820222003 DR1/4 PN.BIST.3/2
0820222004 DR 1/4 PN.BIST.DIF.3
0820223505 COMMANDE BIMANUELL A RAC. DIR. 157P30-1
0820223506 COMMANDE BIMANUELLEC STECKFIX RAC.DIR. 1
0820224001 DISTRIBUTEUR DP ISO 102 MONO
0820224002 DISTRIBUTEUR DP ISO 104 MONO
0820224003 DISTRIBUTEUR DP 5/2 ISO1
0820224004 DISTRIBUTEUR DP ISO1 BIST.
0820224005 DISTRIBUTEUR DP 5/2 ISO1 VW
0820224009 DISTRIBUTEUR DIST. 5/2 ISO 1
0820224010 DISTRIBUTEUR ELECT D.5/2 ISO1 SS PIL.VW
0820224014 DISTRIBUTEUR DP 5/2 ISO 1
0820224016 DIR.-CONTROL VALVE DIST.ISO1 5/2.PN.RE.
0820224020 DIR.-CONTROL VALVE WV ISO1 5/2 CDE PNEU
0820224040 DISTRIBUTEUR ED 5/2 ISO1 UNI.UR12
0820224041 DIR.-CONTROL VALVE ED 5/2 ISO1 UNI UM15
0820224042 DIR.-CONTROL VALVE ED 5/2 ISO1 UNI UR11
0820224043 DIR.-CONTROL VALVE ED 5/2 ISO1 UNI UM12
0820225101 DISTRIBUTEUR DIST ISO2 PN 5/2
0820225102 DISTRIBUTEUR DIST ISO2 PN 5/2
0820225103 DISTRIBUTEUR DIST ISO2 PN 5/2
0820225104 DISTRIBUTEUR DIST ISO2 PN 5/2
0820225124 DISTRIBUTEUR DIST ISO2 PN 5/2
0820227001 DISTRIBUTEUR DP 5/3 ISO 106
0820227002 DISTRIBUTEUR DP 5/3 ISO 108
0820227005 DISTRIBUTEUR DP 5/3 ISO 106
0820227011 DIR.-CONTROL VALVE DP 5/3 ISO1 VW
0820227040 DISTRIBUTEUR ED 5/3 ISO1 UNI URCF
0820227041 DIR.-CONTROL VALVE ED 5/3 ISO1 UNI URCO
0820227042 DIR.-CONTROL VALVE ED 5/3 ISO1 UNI URCY
0820228101 DISTRIBUTEUR DIST ISO2 PN 5/3CF
0820228102 DISTRIBUTEUR DIST ISO2 PN 5/3CO
0820228103 DISTRIBUTEUR DIST ISO2 PN 5/3CY
0820230001 DISTRIBUTEUR DP 5/2 G1/8 MONO PN
0820230002 DISTRIBUTEUR DP 5/2 G1/8 MONO
0820230003 DISTRIBUTEUR DP 5/2 G1/8 BIST.
0820230004 DISTRIBUTEUR DIST.5/2 G1/8 CDE PN
0820230102 DISTRIBUTEUR DP 5/2 G1/8 MONO
0820230103 DISTRIBUTEUR DP 5/2 G1/8 BIST.
0820230104 DISTRIBUTEUR DIST.5/2 G1/8 CDE PN
0820231001 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820231002 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820231003 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820231004 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820231102 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820231103 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820231104 DISTRIBUTEUR DIST.5/2 G1/4 CDE PN
0820234001 DISTRIBUTEUR DIST.5/3 G1/8 CDE PN
0820234003 DISTRIBUTEUR DIST.5/3 G1/8 CDE PN
0820234101 DISTRIBUTEUR DIST.5/3 G1/8 CDE PN
0820235001 DISTRIBUTEUR DIST.5/3 G1/4 CDE PN
0820235002 DISTRIBUTEUR DIST.5/3 G1/4 CDE PN
0820235003 DISTRIBUTEUR DIST.5/3 G1/4 CDE PN
0820235101 DISTRIBUTEUR DIST.5/3 G1/4 CDE PN
0820235102 DISTRIBUTEUR DIST.5/3.G1/4.CDE PN
0820238001 WV02-5/2XX-AS
0820238002 WV02-5/2XX-DO
0820238101 DIR.-CONTROL VALVE 6T 5/2 PN MONO RE
0820238102 WV02-5/2DP
0820238103 CD02-5/2XX-AS
0820238104 CD02-5/2XX-DO
0820239001 WV02-5/3CC-SR
0820239002 WV02-5/3EC-SR
0820239003 WV02-5/3PC-SR
0820239104 CD02-5/3CC-SR
0820239105 CD02-5/3EC-SR
0820239106 CD02-5/3PC-SR
0820251001 CD01-5/2AS-VD01-AL
0820251003 CD01-5/2AR-VD01-AL
0820251004 CD01-5/2AR-VD01-AL
0820253003 CD01-3/2OC-VD01-AL
0820258001 TC15-5/2XX-AR-E-SGL
0820258002 TC15-5/2XX-SR-E-SGL
0820258003 TC15-5/2XX-DO-E-SGL
0820258004 TC15-5/2XX-DD-E-SGL
0820258701 TC15-5/2XX-AR-E-VTS
0820258702 TC15-5/2XX-SR-E-VTS
0820258703 TC15-5/2XX-DO-E-VTS
0820258704 TC15-5/2XX-DD-E-VTS
0820259001 TC15-5/3CC-DO-E-SGL
0820259002 TC15-5/3EC-DO-E-SGL
0820259003 TC15-5/3PC-DO-E-SGL
0820259701 TC15-5/3CC-DO-E-VTS
0820259702 TC15-5/3EC-DO-E-VTS
0820259703 TC15-5/3PC-DO-E-VTS
0820260001 TC08-5/2XX-AR-E-SGL
0820260002 TC08-5/2XX-AS-E-SGL
0820260003 TC08-5/2XX-DO-E-SGL
0820260004 TC08-5/2XX-DD-E-SGL
0820260701 TC08-5/2XX-AR-E-VTS
0820260702 TC08-5/2XX-AS-E-VTS
0820260703 TC08-5/2XX-DO-E-VTS
0820260704 TC08-5/2XX-DD-E-VTS
0820261001 TC08-5/3CC-DO-E-SGL
0820261002 TC08-5/3EC-DO-E-SGL
0820261003 TC08-5/3PC-DO-E-SGL
0820261701 TC08-5/3CC-DO-E-VTS
0820261702 TC08-5/3EC-DO-E-VTS
0820261703 TC08-5/3PC-DO-E-VTS
0820400001 VVAP-3/2NC-PLU
0820400002 VVAP-3/2NC-ROL
0820400003 VVAP-3/2NC-ROL
0820400004 VVAP-3/2NC-PUS
0820400005 VVAP-3/2NC-LEV
0820400006 VVAP-3/2NC-PED
0820400008 VVAP-3/2NC-PED-LOCK
0820400010 VVAP-3/2NC-PLU
0820400014 VVAP-3/2NC-LEV
0820400015 VVAP-3/2NC-PED-NPTF
0820401001 VVAP-4/2DM-PLU
0820401002 VVAP-4/2DM-ROL
0820401003 VVAP-4/2DM-ROL
0820401004 VVAP-4/2DM-PUS
0820401005 VVAP-4/2DM-LEV
0820401006 VVAP-4/2DM-PED
0820401008 VVAP-4/2DM-PED-LOCK
0820401012 VVAP-4/2DM-PLU
0820401013 VVAP-4/2DM-ROL
0820401017 VVAP-4/2DM-PED-NPTF
0820401100 RA14-5/2XX-ME-HLD
0820401101 DIR.-CONTROL VALVE DIST.5/2 WV 1/4
0820402001 VVST-3/2NC-PLU
0820402002 VVST-3/2NC-ROL
0820402003 VVST-3/2NC-ROL
0820402004 VVST-3/2DM-PUS
0820402005 VVST-3/2DM-LEV
0820402007 DIR.-CONTROL VALVE .
0820402008 DIST.INOX C099/T018 "3/2 WV 1/8"", STAHL
0820402009 VVST-3/2NC-ROL
0820402010 VVST-3/2NC-ROL
0820402011 DIST.INOX C099/T018 "3/2 WV 1/8"", STAHL
0820402014 VVST-3/2NC-ROL
0820402015 DIST.INOX C127T025 3/2 WV 1/8"", STAHL
0820402016 VVST-3/2NC-ROL
0820402017 MECH-VALVE 3/2 1/8 C099/T002 ST
0820402018 VVST-3/2SR
0820402019 VVST-3/2NC-PLU
0820402022 VVST-3/2NC-ROL
0820402023 VVST-3/2NC-PLU
0820402026 DIST.INOX C079T040 "3/2 WV 1/8"",STAHL
0820402030 VVST-3/2NC-PLU
0820402032 DIR.-CONTROL VALVE "3/2 WV 1/8"", STAHL
0820402034 VVST-3/2DM-PUS
0820402046 VVST-3/2NC-ROL
0820402101 VVAP-3/2NC-PLU
0820402102 VVAP-3/2NC-ROL
0820402103 VVAP-3/2NC-ROL
0820402104 VVAP-3/2NC-PUS
0820402105 VVAP-3/2NC-LEV
0820402108 VVAP-3/2NC-ROL
0820402110 VVAP-3/2NC-PUS
0820402111 VVAP-3/2NC-LEV
0820402113 VVAP-3/2NC-PLU
0820403001 VVST-5/2SR-PLU
0820403002 VVST-5/2SR-ROL
0820403003 VVST-5/2SR-ROL
0820403004 VVST-5/2SR-PUS
0820403005 VVST-5/2DM-LEV
0820403008 DIST.INOX C098/T017 "5/2 WV 1/8"" STAHL,
0820403009 DIST.INOX C098/T017 "5/2 WV 1/8"" STAHL,
0820403010 DIST.INOX C098&T017 "5/2 WV 1/8"" STAHL,
0820403011 DIST.INOX C098T017 "5/2 WV 1/8"" STAHL,
0820403014 VVST-5/2SR-ROL
0820403015 DIST.INOX C098T023 "5/2 WV 1/8"" STAHL,
0820403016 VVST-5/2SR-ROL
0820403017 DIST.INOX C098/T001"5/2 WV 1/8"" STAHL,
0820403018 VVST-5/2SR
0820403019 VVST-5/2DM-PLU
0820403022 VVST-5/2SR
0820403023 VVST-5/2SR-PLU
0820403026 DIR.-CONTROL VALVE 098/T001 5/2 1/8"INOX
0820403030 DIST.INOX C098/T001 5/2 NG4 (G1/8)
0820403031 VVST-5/2SR-ROL
0820404015 VVAP-2/2NC-ROL
0820404020 VVAP-2/2NC-PLU
0820404021 VVAP-2/2NC-ROL
0820404022 VVAP-2/2NC-ROL
0820404023 VVAP-2/2NC-PUS
0820404024 VVAP-2/2NC-LEV
0820405001 DIR.-CONTROL VALVE 3/2-SERIE ML-G1/4
0820406001 DIR.-CONTROL VALVE .
0820407001 DIR.-CONTROL VALVE .
0820408001 VVAP-3/2NC-PLU
0820408002 VVAP-3/2NC-ROL
0820408003 VVAP-3/2NC-ROL
0820408004 VVAP-3/2NC-PUS
0820408005 VVAP-3/2NC-PUS
0820408009 VVAP-3/2NC-ROL
0820408010 VVAP-3/2NC-PLU / M5-INOX
0820410100 RA14-5/3CC-ME-HLD
0820410101 DIR.-CONTROL VALVE DIST. 5/3 CDE MAN.
0820410102 DIR.-CONTROL VALVE DIST. 5/3 CDE MAN.
0820410110 RA14-5/3CC-SR-HL
0820410111 HAND-LEVER VALVE G1/4";5/3 CDE MAN.
0820410112 DIR.-CONTROL VALVE DIST. 5/3 CDE MAN.
0820410113 DISTRIBUTEUR DM 5/3 G1/4
0821000002 SHUTTLE VALVE SDC G1/8
0821000003 SHUTTLE VALVE NG6 (G1/4)
0821000004 SELECTEUR DE CIRCU NG2,5(OU)-M5
0821000005 CELLULE OU 1
0821000006 SHUTTLE VALVE CELLULE OU 2
0821000008 CELLULE OU 1
0821000009 CELLULE OU 2
0821000010 SHUTTLE VALVE S.D.C..G 3/8
0821000011 SHUTTLE VALVE S.D.C..G 1/2
0821000014 SHUTTLE VALVE S.D.C. G 3/4...
0821000015 SHUTTLE VALVE S.D.C. G 1...
0821000016 SHUTTLE VALVE SDC G1/8 HDM
0821001002 TWIN-PRESSURE VALV .
0821001003 TWIN-PRESSURE VALV FONCTION ET G1/8
0821001004 SHUTTLE VALVE FONCTION ET M5
0821001005 FONCTION ET1
0821001007 FONCTION ET2
0821001008 CELLULE ET1
0821001009 CELLULE ET2
0821002002 BLEEDER VALVE G1/2
0821002003 RAPID-EXHAUST VALV NG6-G1/4
0821002004 BLEEDER VALVE G3/8
0821002007 C.E.A..G 3/4
0821002008 RAPID-EXHAUST VALV .
0821003001 NON-RETURN VALVE CAR G1/8
0821003002 NON-RETURN VALVE G1/4;NG6
0821003003 NON-RETURN VALVE .
0821003004 NON-RETURN VALVE .
0821003005 NON-RETURN VALVE .
0821003007 C.A.R..G 3/4
0821003008 C.A.R.. G 1
0821003017 NON-RETURN VALVE UECKSCHLAGVENTIL NG
0821003018 NON-RETURN VALVE UECKSCHLAGVENTIL NG
0821003020 NR01-SKR-DA04
0821003021 NON-RETURN VALVE .
0821003022 NR01-SKR-DA08
0821003025 NON-RETURN VALVE C.A.R PILOTE G 1/8
0821003026 C.A.R PILOTE G 1/4
0821003027 C.A.R PILOTE G 3/8
0821003028 NON-RETURN VALVE G 1/2
0821003029 C.A.R PILOTE G 3/4
0821003030 C.A.R PILOTE G 1"
0821003032 C.A.R PIL.HERION G1/
0821003034 C.A.R PIL.HERION G1/
0821003036 NON-RETURN VALVE C.A.R PILOTE G 1/8
0821003042 NON-RETURN VALVE G 3/8CM
0821003045 NON-RETURN VALVE .
0821003046 NON-RETURN VALVE .
0821003047 NON-RETURN VALVE G3/8
0821003048 NON-RETURN VALVE G1/2
0821003050 NON-RETURN VALVE G1/8
0821003051 NON-RETURN VALVE ENTSPERRBARES RUECKS
0821003075 SHUT-OFF VALVE G1/8
0821003076 SHUT-OFF VALVE G1/4
0821100003 PRESSURE SWITCH .
0821100018 PRESSURE SWITCH .
0821100020 PM1-M3-F001-V09-000-DINA
0821100066 PE3-PV-G018-V10-000-M008-( ANALOG 1-5V)
0821100067 PE3-PV-G018-V10-100-M008-( ANALOG 1-5V)
0821100069 PE3-P2-G018-V10-000-M008
0821100070 PE3-P2-G018-000-100-M008
0821200003 THROTTLE CHECK VLV G1/2
0821200005 THROTTLE CHECK VLV NG4 (G1/4) D.4,0
0821200008 THROTTLE CHECK VLV NG4 (G1/8) D.2,0
0821200009 THROTTLE CHECK VLV G1/8 D.1,0
0821200010 ERU G1/8 NPTF 1
0821200011 THROTTLE CHECK VLV .
0821200013 THROTTLE CHECK VLV .
0821200014 E.R.U..G 3/8
0821200015 E.R.U..G 3/4
0821200016 E.R.U..G 1
0821200117 THROTTLE CHECK VLV .
0821200118 THROTTLE CHECK VLV .
0821200128 THROTTLE CHECK VLV .
0821200129 RACCORD-BANJO-ETRANGL-SORTIE-M5-6-CC02
0821200149 THROTTLE CHECK VLV .
0821200166 THROTTLE CHECK VLV .
0821200175 THROTTLE CHECK VLV .
0821200176 THROTTLE CHECK VLV .
0821200177 THROTTLE CHECK VLV .
0821200178 THROTTLE CHECK VLV .
0821200179 THROTTLE CHECK VLV .
0821200180 THROTTLE CHECK VLV .
0821200181 THROTTLE CHECK VLV .
0821200182 THROTTLE CHECK VLV .
0821200183 THROTTLE CHECK VLV .
0821200184 THROTTLE CHECK VLV .
0821200185 THROTTLE CHECK VLV .
0821200192 THROTTLE CHECK VLV DROSSELRUECKSCHLAGV
0821200194 THROTTLE CHECK VLV NG4 G1/8
0821200196 THROTTLE CHECK VLV .
0821200200 THROTTLE CHECK VLV .
0821200201 THROTTLE CHECK VLV RV M.INNENG. G1/8
0821200202 THROTTLE CHECK VLV .
0821200203 THROTTLE CHECK VLV DROSSELRUECKSCHLAGVE
0821200204 THROTTLE CHECK VLV NG4 (G1/8)
0821200205 THROTTLE CHECK VLV G1/4
0821200206 THROTTLE CHECK VLV NG8 (G3/8)
0821200207 THROTTLE CHECK VLV G1/2
0821200208 THROTTLE CHECK VLV .
0821200209 THROTTLE CHECK VLV .
0821200210 THROTTLE CHECK VLV .
0821200211 THROTTLE CHECK VLV G1/4
0821200212 THROTTLE CHECK VLV .
0821200213 THROTTLE CHECK VLV G1/4
0821200214 THROTTLE CHECK VLV DROSSELRUECKSCHLAGVE
0821200215 THROTTLE CHECK VLV G1/8
0821200216 THROTTLE CHECK VLV .
0821200217 THROTTLE CHECK VLV ROSSELVENTIL 3/8
0821200225 THROTTLE CHECK VLV .
0821200226 THROTTLE CHECK VLV .
0821200227 THROTTLE CHECK VLV .
0821200229 THROTTLE CHECK VLV .
0821200230 THROTTLE CHECK VLV .
0821200231 THROTTLE CHECK VLV .
0821200232 THROTTLE CHECK VLV .
0821200236 THROTTLE CHECK VLV ADMISSION-G1/8-D6
0821200237 THROTTLE CHECK VLV .
0821200238 THROTTLE CHECK VLV ADMISSION-G1/4-D6
0821200239 THROTTLE CHECK VLV .
0821200241 THROTTLE CHECK VLV .
0821200242 THROTTLE CHECK VLV ROSSELRUECKSCHLAGV.
0821200243 THROTTLE CHECK VLV .
0821200244 THROTTLE CHECK VLV ROSSELRUECKSCHLAGV.
0821200245 THROTTLE CHECK VLV .
0821200246 THROTTLE CHECK VLV ROSSELRUECKSCHLAGVE
0821200247 THROTTLE CHECK VLV ROSSELRUECKSCHLAGV.
0821200248 THROTTLE CHECK VLV ROSSELRUECKSCHLAGVE
0821200249 THROTTLE CHECK VLV .
0821200253 DROSSELRUECKSCHLAGVENTIL G014
0821201001 THROTTLE VALVE DROSSEL
0821201002 THROT. SCREW INS. .
0821201003 THROT. SCREW INS. DROSSEL
0821201004 THROTTLE VALVE NG4 (G1/8) LIM D?B 2
0821201006 THROTTLE VALVE LIMITEUR DE DEBIT 8
0821201007 THROTTLE VALVE .
0821201008 THROT. SCREW INS. .
0821201009 THROT. SCREW INS. .
0821201010 THROTTLE VALVE LIMITEUR DE DEBIT 1
0821201011 THROTTLE VALVE NG6 (G1/4)LIM DEBIT 4
0821201022 THROTTLE VALVE DROSSELPL.ZUR ABLUFT
0821201023 THROTTLE VALVE ROSSELPL.ZUR ABLUFTD
0821201024 THROTTLE VALVE DROSSELPL.ZUR ABLUFT
0821201101 THROT. SCREW INS. DROSSELVENTIL M. SCH
0821201102 THROT. SCREW INS. NG4-G1/8
0821201103 THROT. SCREW INS. G014
0821201104 THROT. SCREW INS. G3/8
0821201105 THROT. SCREW INS. NG12 (G1/2)
0821201106 THROT. SCREW INS. .
0821201109 THROTTLE VALVE .
0821300014 NL2-FRL-R014-GAU-100-PNB-MA-40,00
0821300030 NLC-FRL-G014-GAU-100-PNB-MA-40,00
0821300032 NLC-FRL-G038-GAU-100-PNB-MA-40,00
0821300040 NLC-FRL-G012-GAU-100-PNB-MA-40,00
0821300042 NL4-FRL-G034-GAU-100-PNB-MA-40,00
0821300050 NLC-FRL-G014-GAU-100-PBS-MA-40,00
0821300052 NLC-FRL-G038-GAU-100-PBS-MA-40,00
0821300060 NL4-FRL-G012-GAU-100-PBS-MA-40,00
0821300062 NLC-FRL-G034-GAU-100-PBS-MA-40,00
0821300088 NL4-DIO-G012-NC4
0821300105 CONTROL BLOCK .
0821300106 CONTROL BLOCK .
0821300112 MAINTENANCE UNIT .
0821300117 MAINTENANCE UNIT NL2, G1/4, D=40
0821300132 MAINTENANCE UNIT .
0821300141 SHUT-OFF VALVE .
0821300206 MAINTENANCE UNIT .
0821300212 NL4-FRE-G012-GAU-3 5MU-PBS-HO
0821300220 NL2-FRE-G014-GAU-100-PBS-HO-05,00
0821300221 NL2-FRE-G014-GAU-100-SSS-HO-05,00
0821300222 NL2-FRE-G014-GAU-100-PBS-AO-05,00
0821300223 NL2-FRE-G014-GAU-100-SSS-AO-05,00
0821300224 NL2-FRE-G038-GAU-010-PBP-HO-05,00
0821300226 NL2-FRE-G038-GAU-010-PNB-AO-05,00
0821300228 NL2-FRE-G038-GAU-100-SSS-AO-05,00
0821300234 NL4-FRE-G012-GAU-100-PBS-HO-05,00
0821300235 NL4-FRE-G012-GAU-100-SSS-HO-05,00
0821300236 NL4-FRE-G012-GAU-100-PBS-AO-05,00-2
0821300237 NL4-FRE-G012-GAU-100-PBS-AO-05,00
0821300238 NL4-FRE-G012-GAU-100-SSS-AO-05,00
0821300239 NL4-FRE-G034-GAU-100-PBS-HO-05,00
0821300240 NL4-FRE-G034-GAU-100-SSS-HO-05,00
0821300241 NL4-FRE-G034-GAU-100-PNB-AO-05,00
0821300242 NL4-FRE-G034-GAU-100-PBS-AO-05,00
0821300243 NL4-FRE-G034-GAU-100-SSS-AO-05,00
0821300245 NON-RETURN VALVE .
0821300247 NL2-FRE-N014
0821300250 CONTROL BLOCK VANNE REMISE PRESSIO
0821300252 DIR.-CONTROL VALVE 3/2 WEGV. G1/4 NL2
0821300253 NL2-FRE-G014-GAN-040-PNB-HO-05,00
0821300255 NL2-ACC-G014
0821300258 NL2-FRE-G014-GAU-100-PNB-HO-05,00-SONDER
0821300260 MAINTENANCE UNIT .
0821300264 BRANCH PIECE NL2-DIC-G014-NC2
0821300265 MAINTENANCE UNIT .
0821300266 CONTROL BLOCK ELEKT VORRANGSTEUERG
0821300268 CHARGING DEVICE .
0821300271 CONTROL BLOCK .
0821300275 NL2-FRE-G014-GAN-010-SSS-HO-05,00
0821300277 CONTROL BLOCK .
0821300281 NL4-FRE-G012-GAN 40MU-SSS-AO
0821300285 NL4-FRE-G012-GAU-100-PNB-AO-05,00-SONDER
0821300288 NL4-FRE-G012-GAU-100-PBS-HO-05,00-SONDER
0821300299 CONTROL BLOCK .
0821300300 NL2-FRE-G014-GAU-100-PNB-HO-05,00
0821300301 NL2-FRE-G014-GAU-100-PBS-HO-05,00
0821300302 NL2-FRE-G014-GAU-100-SSS-HO-05,00
0821300303 NL2-FRE-G014-GAU-100-PNB-AO-05,00
0821300304 NL2-FRE-G014-GAU-100-PBS-AO-05,00
0821300305 NL2-FRE-G014-GAU-100-SSS-AO-05,00
0821300306 NL2-FRE-G014-GAU-100-PNB-HO-05,00
0821300307 NL2-FRE-G014-GAU-030-PNB-HO-05,00
0821300308 NL2-FRE-G014-GAU-060-PNB-HO-05,00
0821300310 NL2-FRE-G014-GAU-100-PNB-HO-05,00-SONDER
0821300312 NL2-FRE-G014-GAU-100-PNB-AO-05,00
0821300316 NL2-FRE-G014-GAN-100-PNB-HO-05,00
0821300326 NL2-FRE-G018-GAU-100-PNB-HO-05,00
0821300330 NL2-FRE-G038-GAU-100-PNB-HO-05,00
0821300331 NL2-FRE-G038-GAU-100-PBS-HO-05,00
0821300332 NL2-FRE-G038-GAU-100-SSS-HO-05,00
0821300333 NL2-FRE-G038-GAU-100-PNB-AO-05,00
0821300334 NL2-FRE-G038-GAU-100-PBS-AO-05,00
0821300335 NL2-FRE-G038-GAU-100-SSS-AO-05,00
0821300336 NL2-FRE-G038-GAU-100-PNB-HO-05,00
0821300338 NL2-FRE-G018-GAN-100-PNB-HO-40,00-SONDER
0821300341 NL2-FRE-G038-GAU-100-PNB-HO-05,00-MODI &
0821300342 NL2-FRE-G038-GAU-100-PNB-AO-05,00-MODI &
0821300343 NL2-FRE-G038-GAN-100-PNB-HO-05,00
0821300344 NL2-FRE-G038-GAU-100-PNB-AO-05,00-E11
0821300345 NL2-FRE-G014-GAU-100-PNB-AO-05,00
0821300347 NL2-FRE-G014-GAN-100-PNB-AO-05,00
0821300349 NL2-FRE-G014-GAU-060-PNB-AO-05,00
0821300350 NL4-FRE-G012-GAU-100-PNB-HO-05,00
0821300351 NL4-FRE-G012-GAU-100-PBS-HO-05,00
0821300352 NL4-FRE-G012-GAU-100-SSS-HO-05,00
0821300353 NL4-FRE-G012-GAU-100-PNB-AO-05,00
0821300354 NL4-FRE-G012-GAU-100-PBS-AO-05,00
0821300355 NL4-FRE-G012-GAU-100-SSS-AO-05,00
0821300356 NL4-FRE-G012-GAU-100-PNB-HO-05,00
0821300358 NL4-FRE-G012-GAU-060-PNB-AO-05,00
0821300364 NL4-FRE-G012-GAN-100-PNB-HO-05,00
0821300366 NL4-FRE-G012-GAU-060-SSS-AO-05,00-SONDER
0821300367 NL4-FRE-G012-GAN-100-PNB-AO-05,00
0821300368 NL4-FRE-G012-GAU-100-PNB-HO-05,00-SONDER
0821300369 NL4-FRE-G012-GAU-100-PNB-HO-05,00-SONDER
0821300380 NL4-FRE-G034-GAU-100-PNB-HO-05,00
0821300381 NL4-FRE-G034-GAU-100-PBS-HO-05,00
0821300382 NL4-FRE-G034-GAU-100-SSS-HO-05,00
0821300383 NL4-FRE-G034-GAU-100-PNB-AO-05,00
0821300384 NL4-FRE-G034-GAU-100-PBS-AO-05,00
0821300385 NL4-FRE-G034-GAU-100-SSS-AO-05,00
0821300386 NL4-FRE-G034-GAU-100-PNB-HO-05,00
0821300392 NL4-FRE-G012-GAU-060-PNB-HO-05,00
0821300393 NL4-FRE-G012-GAU-060-PBS-AO-05,00-SONDER
0821300396 NL4-FRE-G012-GAN-060-PBS-AO-05,00-E11
0821300400 NL2-ACD-G014-GAU-100-PNB-HO-05,00
0821300401 NL2-ACD-G014-GAU-100-PBS-HO-05,00
0821300402 NL2-ACD-G014-GAU-100-SSS-HO-05,00
0821300403 NL2-ACD-G014-GAU-100-PNB-AO-05,00
0821300404 NL2-ACD-G014-GAU-100-PBS-AO-05,00
0821300405 NL2-ACD-G014-GAU-100-SSS-AO-05,00
0821300410 PR1-FRE-G014-GAN-020-SSN-MA-10,00
0821300411 PR1-FRE-G014-GAN-050-SSN-MA-10,00
0821300427 MAINTENANCE UNIT .
0821300429 MAINTENANCE UNIT .
0821300430 NL2-ACD-G038-GAU-100-PNB-HO-05,00
0821300431 NL2-ACD-G038-GAU-100-PBS-HO-05,00
0821300432 NL2-ACD-G038-GAU-100-SSS-HO-05,00
0821300433 NL2-ACD-G038-GAU-100-PNB-AO-05,00
0821300434 NL2-ACD-G038-GAU-100-PBS-AO-05,00
0821300435 NL2-ACD-G038-GAU-100-SSS-AO-05,00
0821300441 MAINTENANCE UNIT .
0821300442 MAINTENANCE UNIT .
0821300446 MAINTENANCE UNIT .
0821300450 NL2-ACT-G014-GAU-100-PNB-HO-05,00
0821300451 NL2-ACT-G014-GAU-100-PBS-HO-05,00
0821300452 NL2-ACT-G014-GAU-100-SSS-HO-05,00
0821300453 NL2-ACT-G014-GAU-100-PNB-AO-05,00
0821300454 NL2-ACT-G014-GAU-100-PBS-AO-05,00
0821300455 NL2-ACT-G014-GAU-100-SSS-AO-05,00
0821300478 MAINTENANCE UNIT .
0821300480 NL2-ACT-G038-GAU-100-PNB-HO-05,00
0821300481 NL2-ACT-G038-GAU-100-PBS-HO-05,00
0821300482 NL2-ACT-G038-GAU-100-SSS-HO-05,00
0821300483 NL2-ACT-G038-GAU-100-PNB-AO-05,00
0821300484 NL2-ACT-G038-GAU-100-PBS-AO-05,00
0821300485 NL2-ACT-G038-GAU-100-SSS-AO-05,00
0821300500 NL4-ACD-G012-GAU-100-PNB-HO-05,00-ON
0821300501 NL4-ACD-G012-GAU-100-PBS-HO-05,00-ON
0821300502 NL4-ACD-G012-GAU-100-SSS-HO-05,00-ON
0821300503 NL4-ACD-G012-GAU-100-PNB-AO-05,00-ON
0821300504 NL4-ACD-G012-GAU-100-PBS-AO-05,00-ON
0821300505 NL4-ACD-G012-GAU-100-SSS-AO-05,00-ON
0821300514 MAINTENANCE UNIT .
0821300515 MAINTENANCE UNIT .
0821300516 MAINTENANCE UNIT .
0821300518 MAINTENANCE UNIT .
0821300530 NL4-ACD-G034-GAU-100-PNB-HO-05,00-ON
0821300531 NL4-ACD-G034-GAU-100-PBS-HO-05,00-ON
0821300532 NL4-ACD-G034-GAU-100-SSS-HO-05,00-ON
0821300533 NL4-ACD-G034-GAU-100-PNB-AO-05,00-ON
0821300534 NL4-ACD-G034-GAU-100-PBS-AO-05,00-ON
0821300535 NL4-ACD-G034-GAU-100-SSS-AO-05,00-ON
0821300550 NL4-ACT-G012-GAU-100-PNB-HO-05,00-ON
0821300551 NL4-ACT-G012-GAU-100-PBS-HO-05,00-ON
0821300552 NL4-ACT-G012-GAU-100-SSS-HO-05,00-ON
0821300553 NL4-ACT-G012-GAU-100-PNB-AO-05,00-ON
0821300554 NL4-ACT-G012-GAU-100-PBS-AO-05,00-ON
0821300555 NL4-ACT-G012-GAU-100-SSS-AO-05,00-ON
0821300580 NL4-ACT-G034-GAU-100-PNB-HO-05,00-ON
0821300581 NL4-ACT-G034-GAU-100-PBS-HO-05,00-ON
0821300582 NL4-ACT-G034-GAU-100-SSS-HO-05,00-ON
0821300583 NL4-ACT-G034-GAU-100-PNB-AO-05,00-ON
0821300584 NL4-ACT-G034-GAU-100-PBS-AO-05,00-ON
0821300585 NL4-ACT-G034-GAU-100-SSS-AO-05,00-ON

AVENTICS三位五通换向阀0820039216

来源:上海韦米机电设备有限公司



为了节省您的时间,可加QQ询价

询价单请发传真或邮件,方便快捷!

-----------------------------------------

液压组Hydraulic:

电话Tel:+86-021-61116911

Mobile:+86-13524122975

E-mail: 1572831683@qq.com



电话Tel:+86-021-61314912

Mobile:+86-13501803745 (微信号)

E-mail: 361931277@qq.com

-----------------------------------------

气动组Pneumatic:

电话Tel:+86-021-61116913

Mobile:+86-13524123009 (微信号)

E-mail: 2896079243@qq.com



电话Tel:+86-021-31139779

Mobile:+86-13524123373 (微信号)

E-mail: 1954814697@qq.com

-----------------------------------------

工控组Automation:

电话Tel:+86-021-61116812

Mobile:+86-13524125780

E-mail: 1875691081@qq.com

-----------------------------------------

技术咨询 Consultant :

电话Tel:+86-021-61116912

Mobile:+86-13524122975

E-mail: 416637437@qq.com

-----------------------------------------

联系人Atten雷   成

Mobile:+86-15900772031

-----------------------------------------

传真Fax:+86-021-51334670

E-mail: fred@wei-mi.com

地址:上海市浦东新区金豫路100号禹洲金桥国际2期2号楼907室

-----------------------------------------


[提 示
]

      因工业液压、自动化各进口品牌

备件型号繁多,欧美进口件价格时常

变化因此很难准确标出实时价格,请

以业务代表实时报价单或合同价格为

准!给您带来不便敬请谅解!

在线客服

在线时间

周一至周五
8:30-18:00

周六至周日
9:00-12:00
